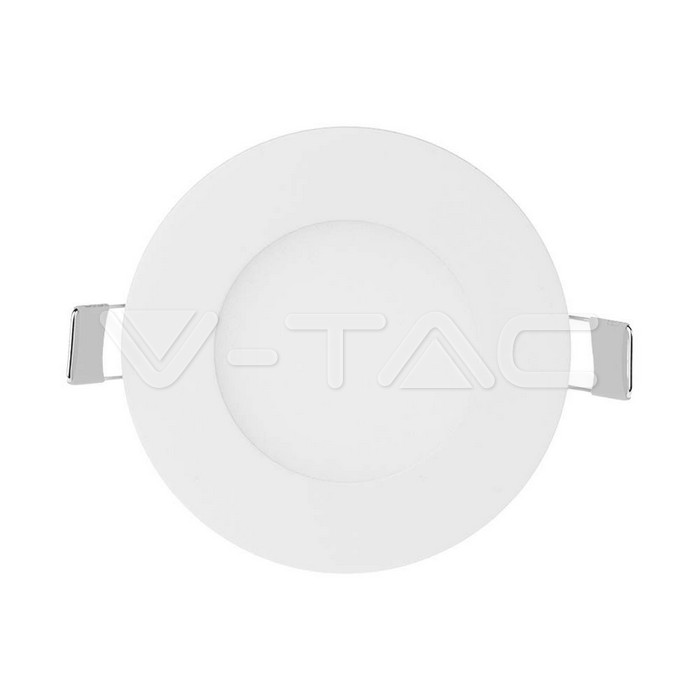

3W LED Premium Panel Downlight Round 3000K, VT-307

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU216292
Brand: V-TAC
Type / Description: LED panel/ LED mini panel/ LED premium panels
Jmenovité napětí (V):85 - 265
Nominal wattage:3
Colour temperature:3000
Colour rendering index CRI:> 80
Luminous flux:210
Lamp efficacy:70
Unit EAN13 code: 3800157616751

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 3W LED Premium Panel Downlight Round 3000K, VT-307


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Aluminum+PMMA+PS
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 85 - 265 V
Degree of protection (IP) IP20
Název položky LED panely/ LED mini panely/ LED premium panels
Skupina produktu V-TAC VT-307 RD

Working conditions

Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 25 W

Safety information

Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 3 W
Frequency 50 - 60 Hz

Physical characteristics

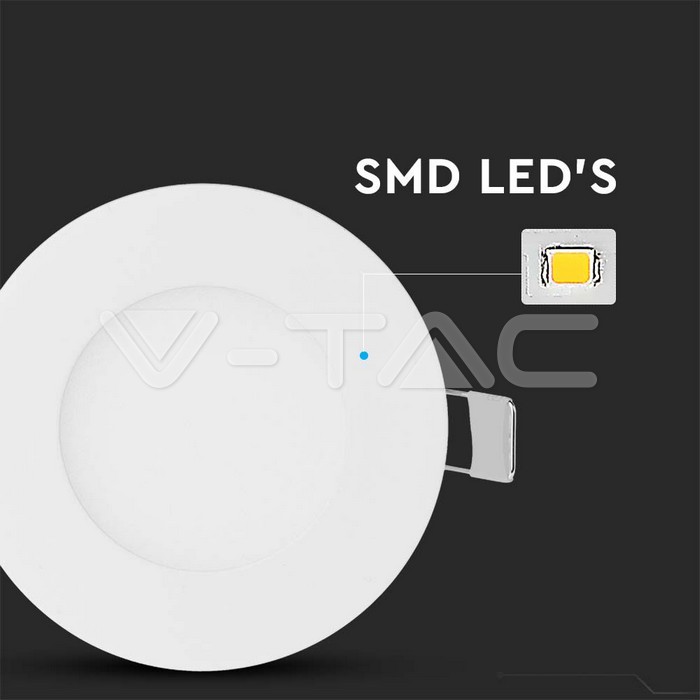

Type of chip SMD

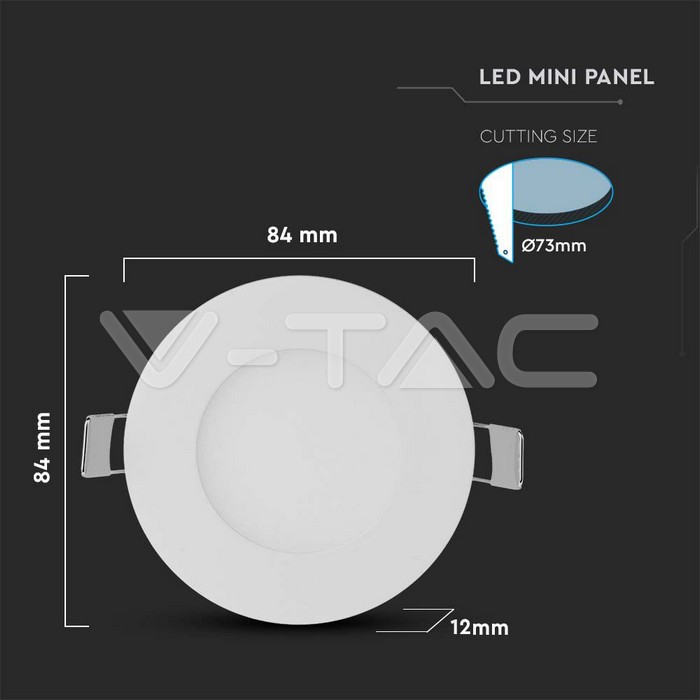

Dimensions (mm) 84 x 12 mm
Diameter 73 mm
Počet ks v balení 1
Tvar V-TAC Round
Barva tělesa V-TAC White
Počet kusů v kartonu 40

Lighting characteristics

Luminous flux 210 lm
Colour temperature 3000 K
Radiation angle 12 °
Colour rendering index CRI 80 Ra
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) > 0.5
Lamp efficacy 70 lm/W
