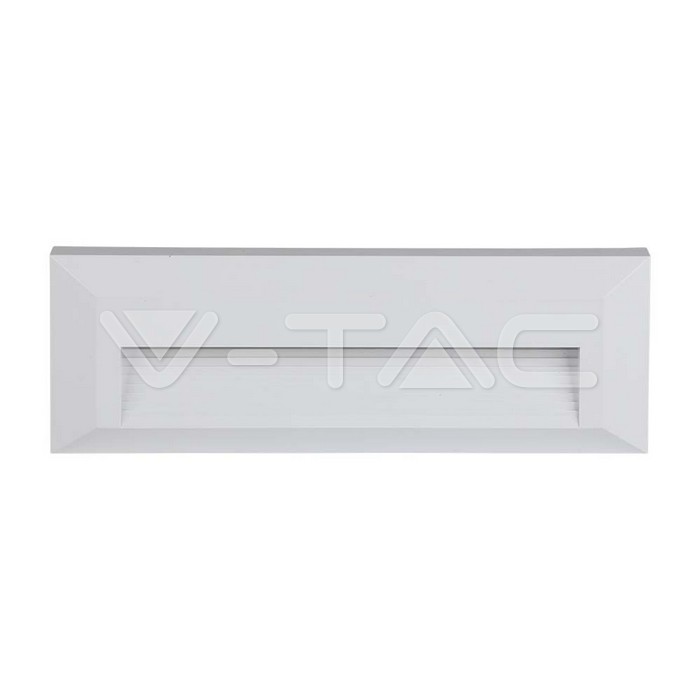

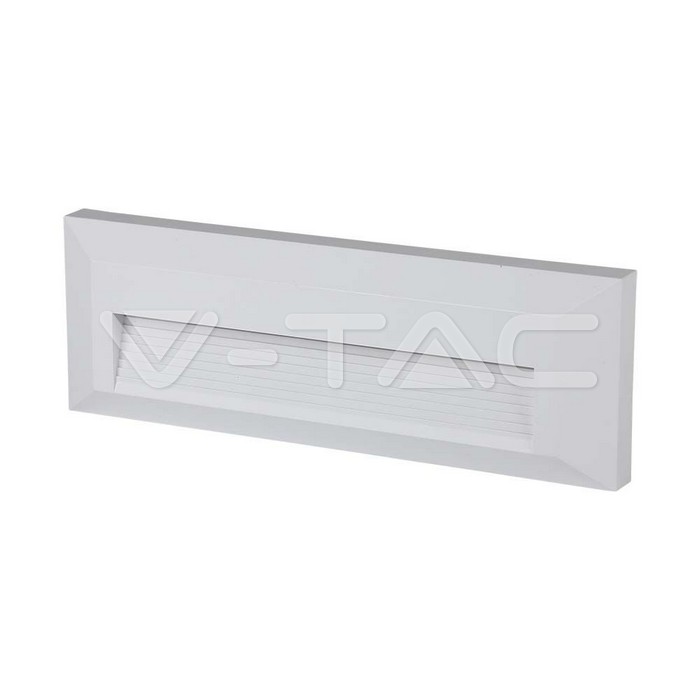

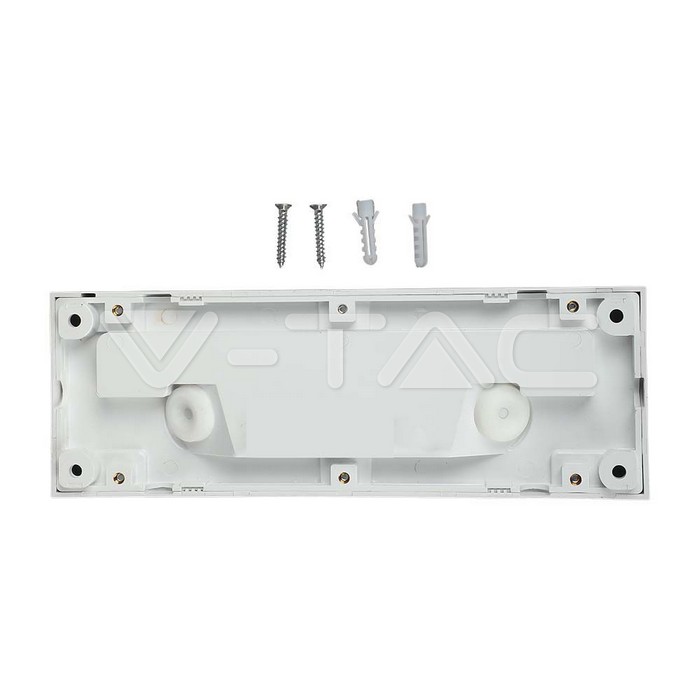

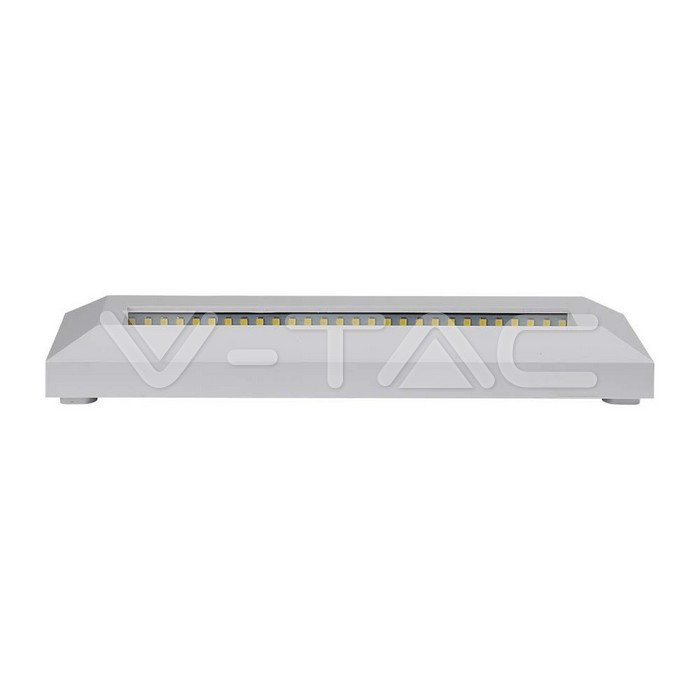

3W LED Step Light White Body Rectangle Natural White, VT-1162

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU211326
Brand: V-TAC
Type / Description: Vestavné obdélníkové LED svítidlo
Jmenovité napětí (V):100 - 240
Nominal wattage:3
Colour temperature:4000
Colour rendering index CRI:> 80
Luminous flux:110
Lamp efficacy:37
Unit EAN13 code: 3800157620543

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 3W LED Step Light White Body Rectangle Natural White, VT-1162


Wiring Diagram not available


General information

Finish Surfaced
Brand/Manufacturer V-TAC
Material PC
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 100 - 240 V

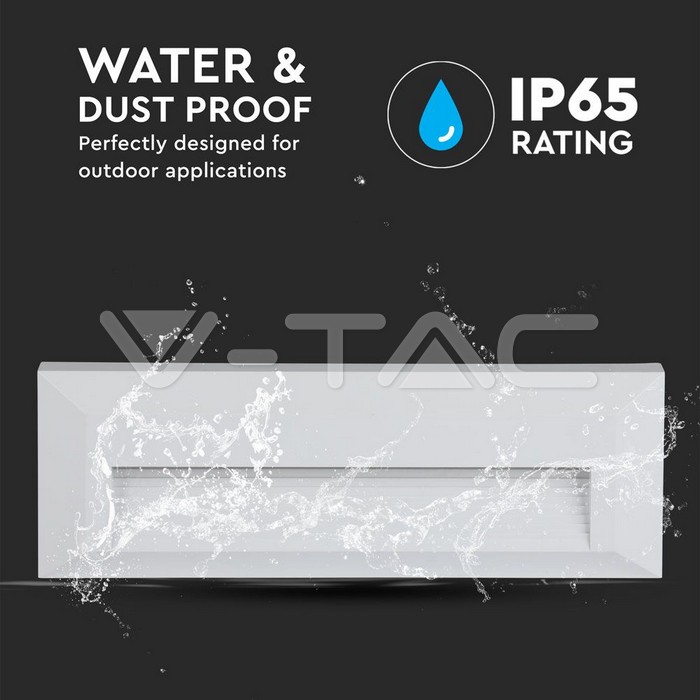

Degree of protection (IP) IP65
Název položky LED Downlight fasádové
Skupina produktu V-TAC VT-1162

Working conditions

Reflector rotatable Ne
Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 15 W

Safety information

Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 3 W
Frequency 50 - 60 Hz

Physical characteristics

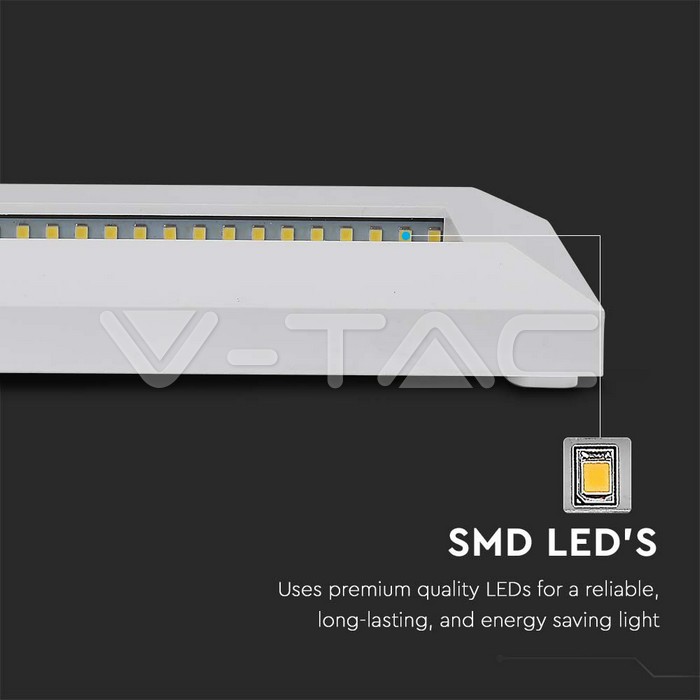

Type of chip SMD

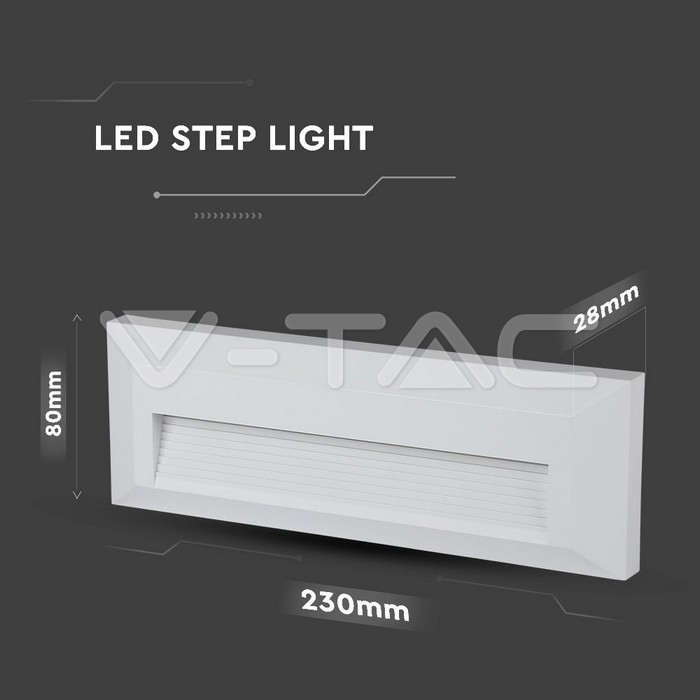

Dimensions (mm) 230 x 80 x 28 mm
Počet ks v balení 1
Tvar V-TAC Round
Barva tělesa V-TAC White
Počet kusů v kartonu 50

Lighting characteristics

Luminous flux 110 lm
Colour temperature 4000 K
Radiation angle 55 °
Colour rendering index CRI 80 Ra
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 37 lm/W
