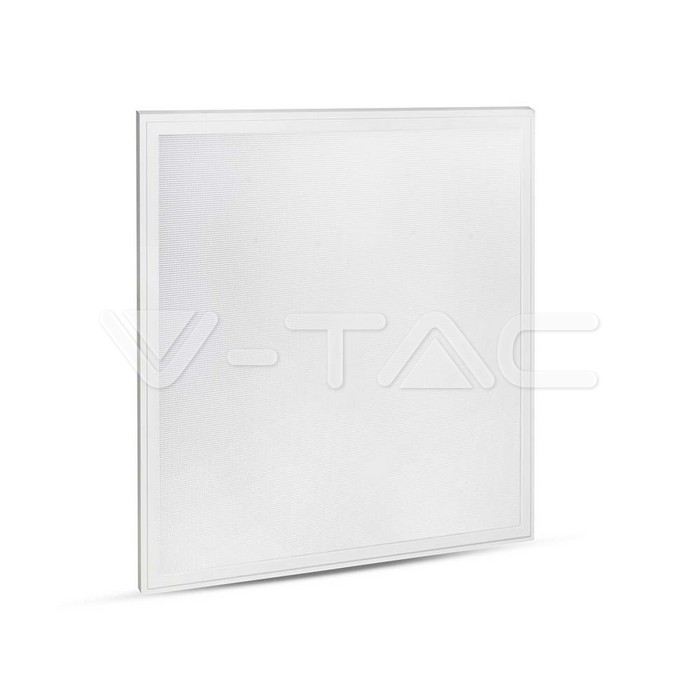

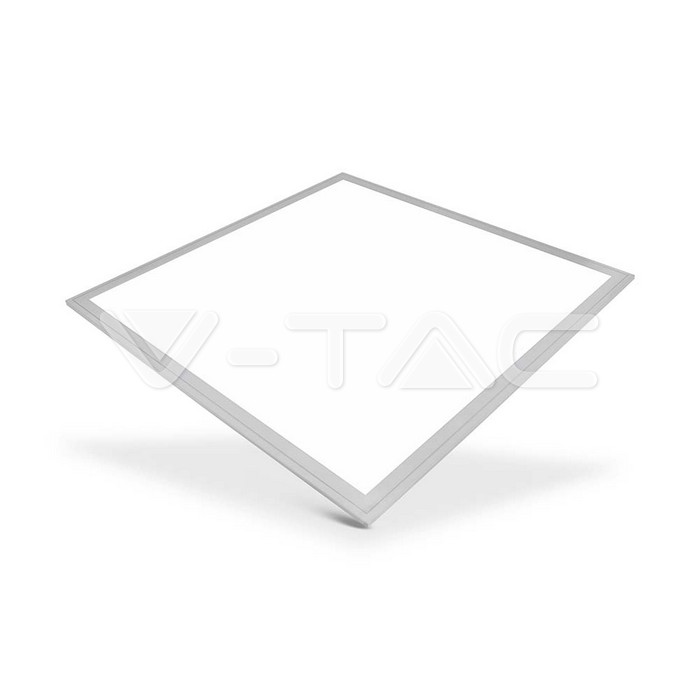

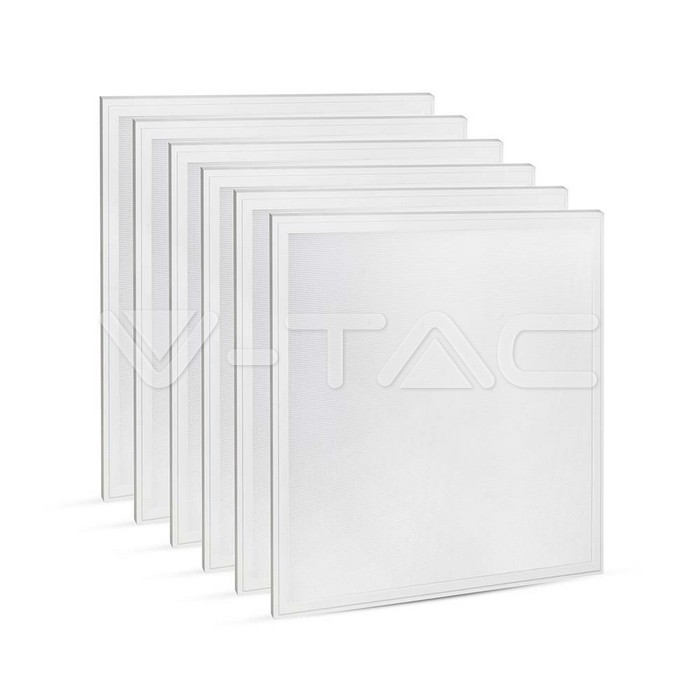

40W-LED PANEL-600*600MM-4500K (BALENO po 6KS, cena za 1ks)

Order number: SKU2160246
Brand: V-TAC
Type / Description: LED panel
Jmenovité napětí (V):200 - 240
Nominal wattage:40
Colour temperature:4500
Colour rendering index CRI:> 80
Luminous flux:4950
Lamp efficacy:80
Unit EAN13 code: 3800157676595

Download

Exclusion of liability

Changes to data are subject to prior notice. NBB Bohemia s.r.o. accepts no responsibility for damages caused by inaccurate interpretation of the content on this site.

Notice

Under the scope of Act 185/2001 Coll. as amended, this product is included in waste group 5 (light sources and luminaires). In view of the harmful effects of mercury on the environment and on human health, the creators of group 5 waste (consumers) are obliged to dispose of used light sources for recycling. Do not throw this product into mixed waste after use. Take it to the nearest store, collection yard, or other designated location for free recycling. You can also dispose of the used products for recycling in our sales outlets or in collection points of collective recycling systems or municipal collection yards. Ecological recycling of waste electrical and electronic equipment is ensured through the RETELA collective system (www.retela.cz).

Notice

Single LED chip failure, luminous flux deviation +/- 10% as well as chromaticity deviation +/- 150K are in compliance with applicable standards and are not a reason for complaint.

More photos available

Technical drawing not available



Download

SKU2160246_13052022

17.52 kB - SKU2160246_13052022.ldt

Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Aluminum+PMMA+PS
Dimmable Ne
Energy efficiency class (canceled regulation!) A
Nominal voltage (V) 200 - 240 V
Degree of protection (IP) IP20
Název položky LED panely/LED panely 600x600 mm
Skupina produktu V-TAC VT-6060

Working conditions

Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 25000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 150 W

Safety information

Product certification CE, EMC, ROHS

Electrical characteristics

Nominal wattage 40 W
Frequency 50 Hz

Physical characteristics

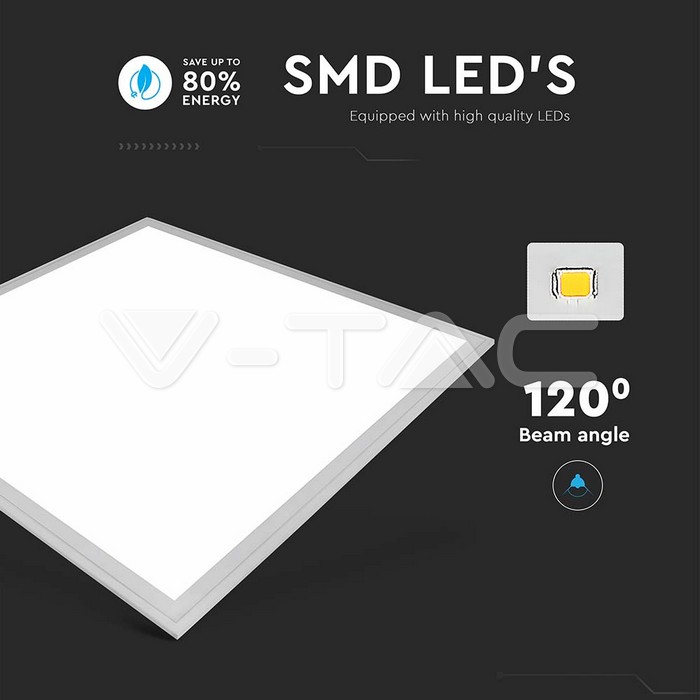

Type of chip SMD

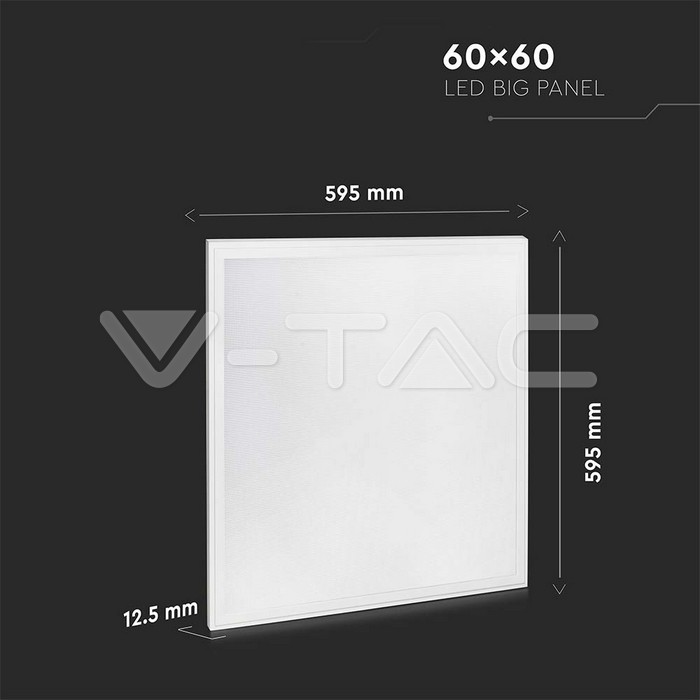

Dimensions (mm) 595 x 595 x 12,5 mm
Počet ks v balení 6
Tvar V-TAC Square
Barva tělesa V-TAC White
Počet kusů v kartonu 1

Lighting characteristics

Luminous flux 4950 lm
Colour temperature 4500 K
Radiation angle 110 °
Colour rendering index CRI 80 Ra
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.9
Lamp efficacy 80 lm/W
