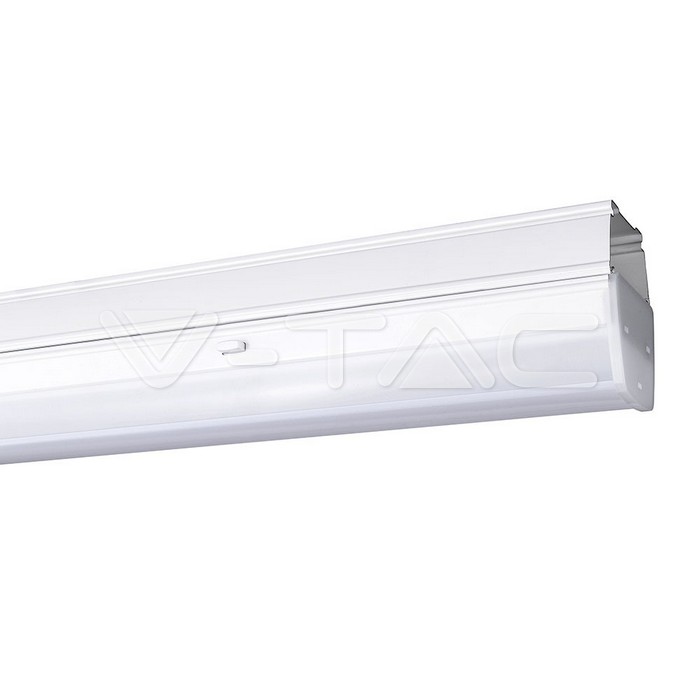

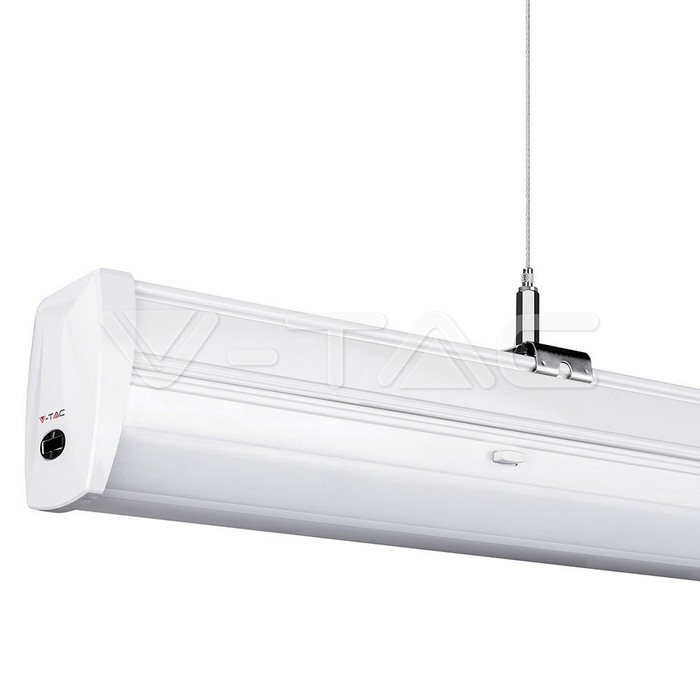

50W LED Linear Master Trunking 120° Lens Natural White, VT-4551D

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1361
Brand: V-TAC
Type / Description: LED Lineární osvětlení
Jmenovité napětí (V):220 - 240
Nominal wattage:50
Colour temperature:4000
Colour rendering index CRI:> 80
Luminous flux:8000
Lamp efficacy:160
Unit EAN13 code: 3800157625654

Download

Technical sheet

More photos available

Technical drawing not available


Download

Technical sheet

Technical sheet 50W LED Linear Master Trunking 120° Lens Natural White, VT-4551D


Wiring Diagram not available


General information

Finish Master
Brand/Manufacturer V-TAC
Material Steel
Dimmable Ano
Energy efficiency class (canceled regulation!) A++
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Název položky LED Lineární osvětlení
Skupina produktu V-TAC VT-4551D

Working conditions

Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >25000
Rated service life 50000 h
Turn-on time 0.001 sec (instant on) s

Lighting characteristics

Luminous flux 8000 lm
Colour temperature 4000 K

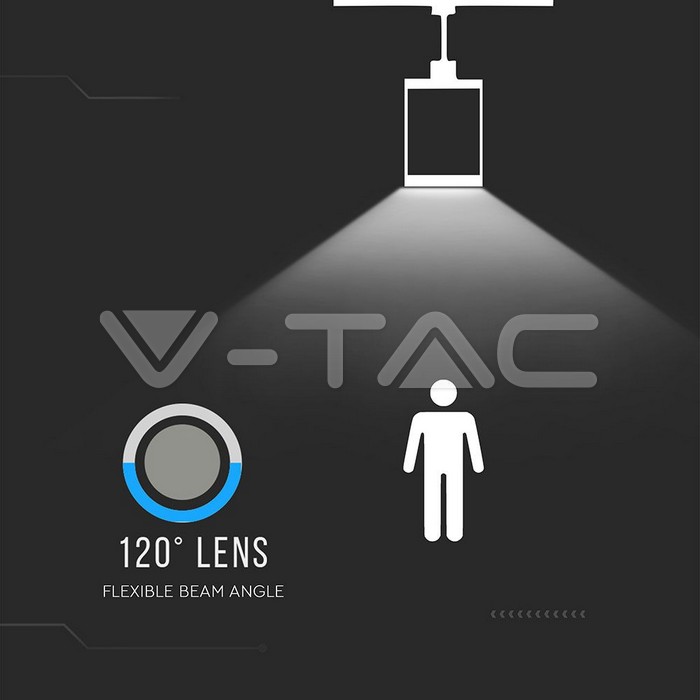

Radiation angle 120 °
Colour rendering index CRI 80 Ra
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.9

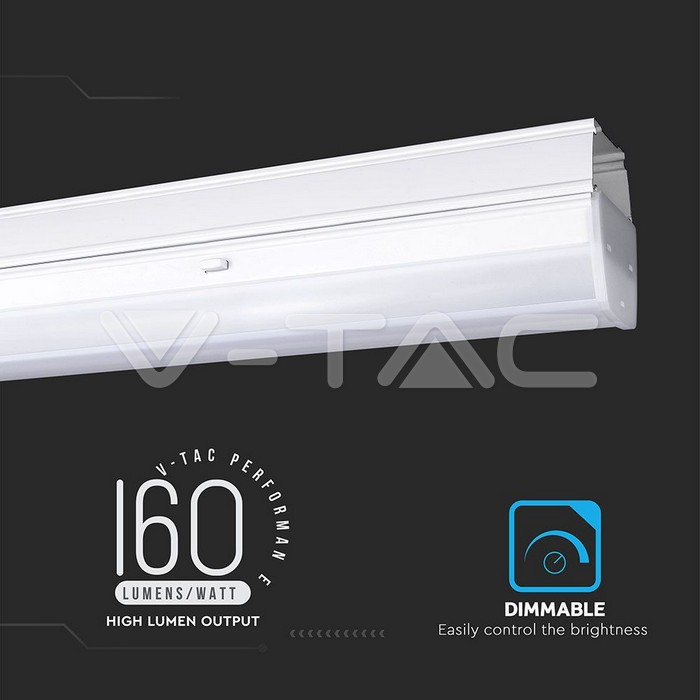

Lamp efficacy 160 lm/W

Electrical characteristics

Nominal wattage 50 W
Frequency 50 - 60 Hz

Physical characteristics

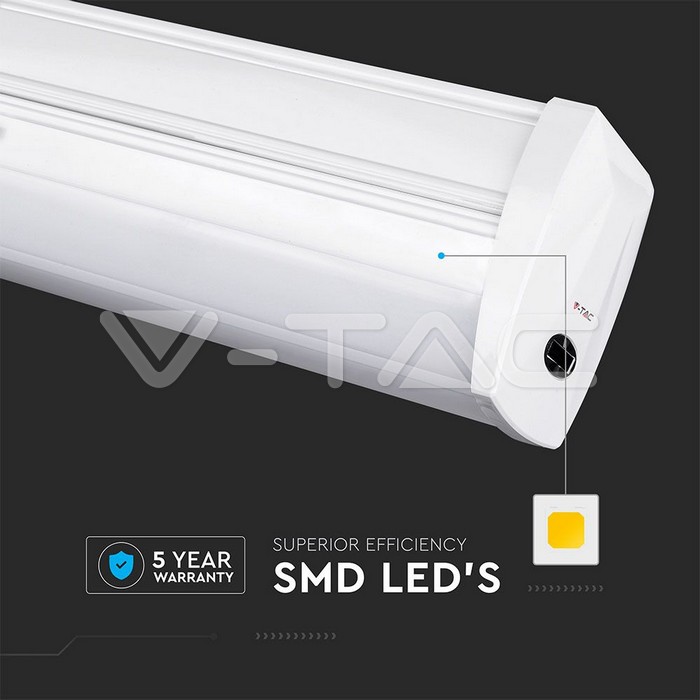

Type of chip SMD

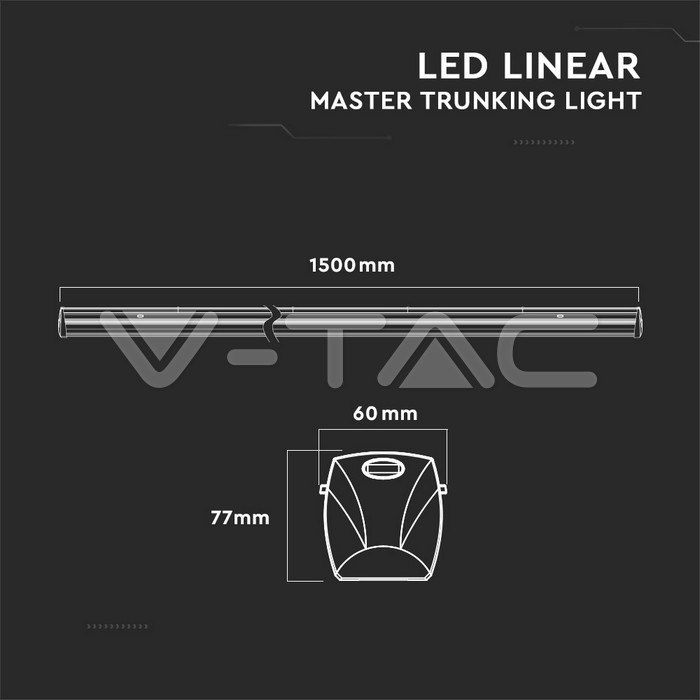

Length 1500 mm
Barva tělesa V-TAC White
Počet kusů v kartonu 2

Additional information

Note Sensor Compatibility

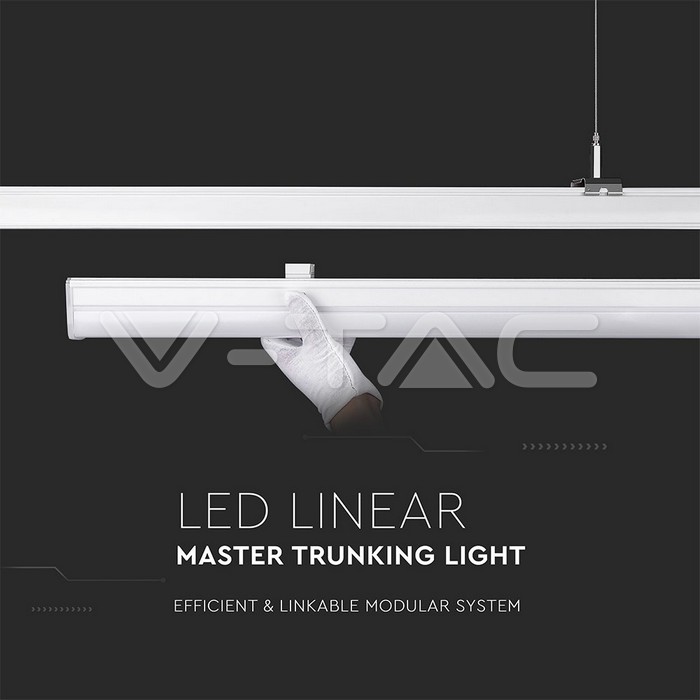

Dodatečné informace Master module can be independently installedas a single unit

Safety information

Product certification CE, EMC
