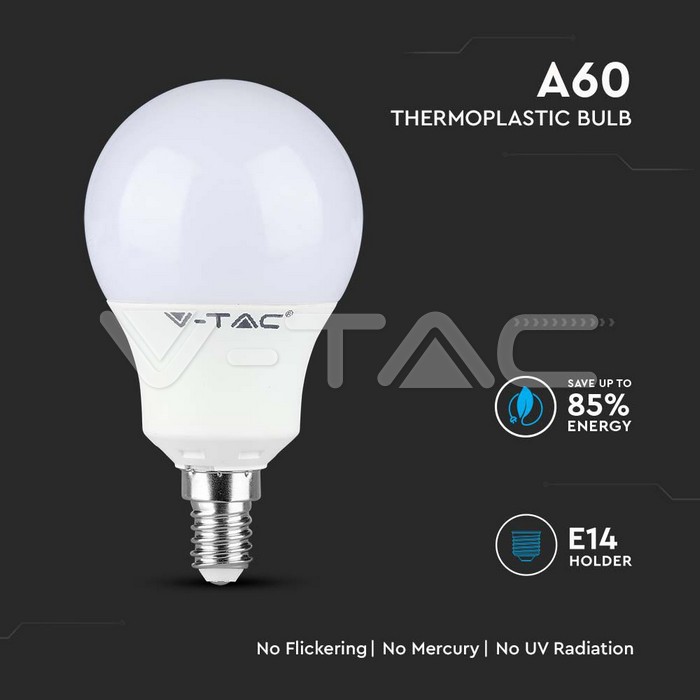

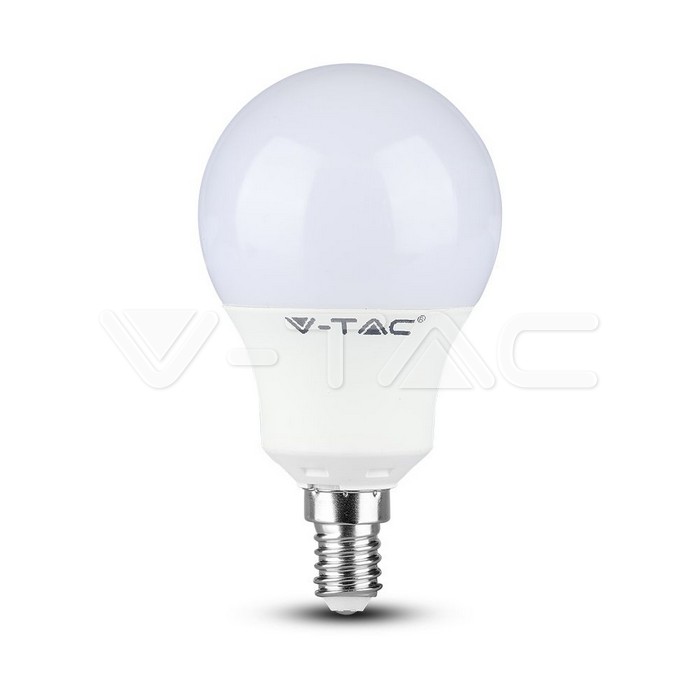

LED Bulb SAMSUNG Chip 8.5W E14 P45 Plastic 4000K

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU21115
Brand: V-TAC
Type / Description: LED žárovka SAMSUNG čip - záruka 5 let
Jmenovité napětí (V):220 - 240
Nominal wattage:9
Colour temperature:4000
Colour rendering index CRI:> 80
Luminous flux:806
Lamp efficacy:90
Unit EAN13 code: 3800157677431
Use: Components for LED lighting
Guarantee: 60 months

Download

Technical sheet

Technical drawing not available


Download

Technical sheet

Technical sheet LED Bulb SAMSUNG Chip 8.5W E14 P45 Plastic 4000K


Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Thermoplastic
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Název položky LED žárovka SAMSUNG čip - záruka 5 let
Skupina produktu V-TAC VT-269

Working conditions

Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles >20000
Rated service life 30000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 60 W

Safety information

Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 9 W
Frequency 50 Hz

Physical characteristics

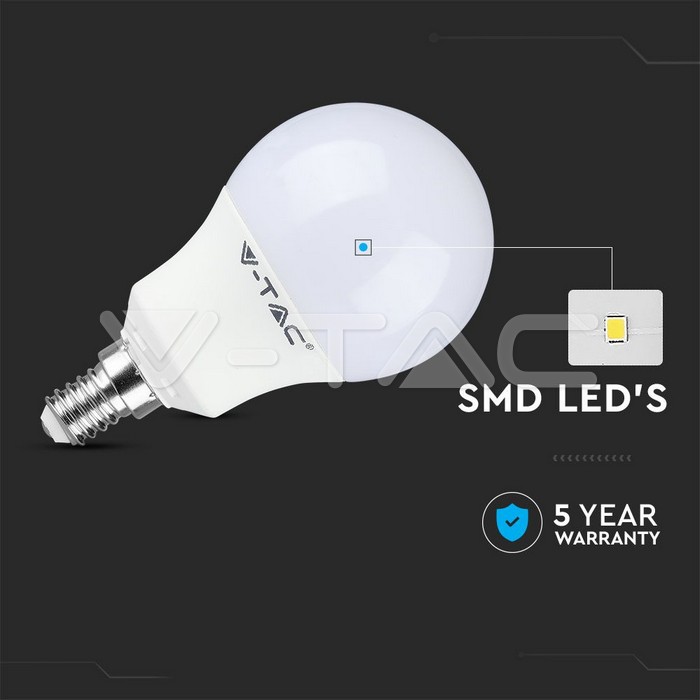

Type of chip SAMSUNG Chip

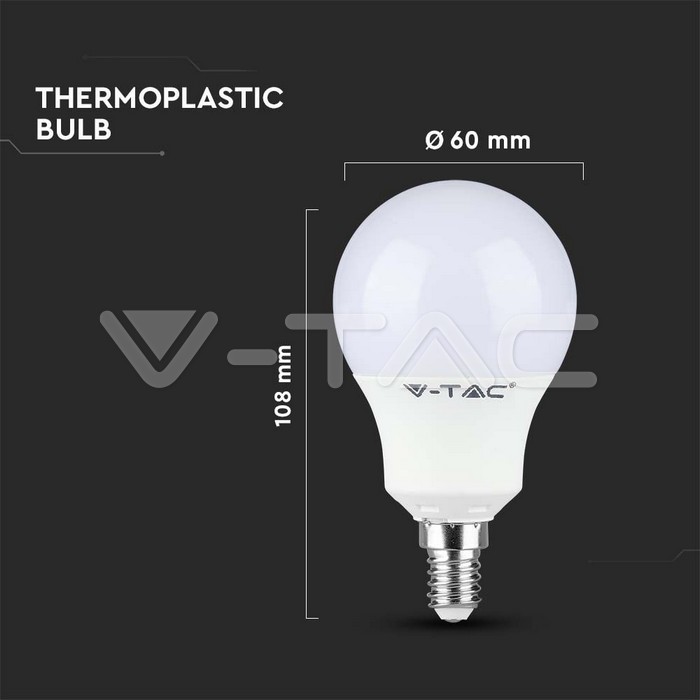

Height 109 mm
Diameter 60 mm
Lamp shape A60
Počet ks v balení 1
Barva tělesa V-TAC White
Počet kusů v kartonu 100

Lighting characteristics

Luminous flux 806 lm
Colour temperature 4000 K

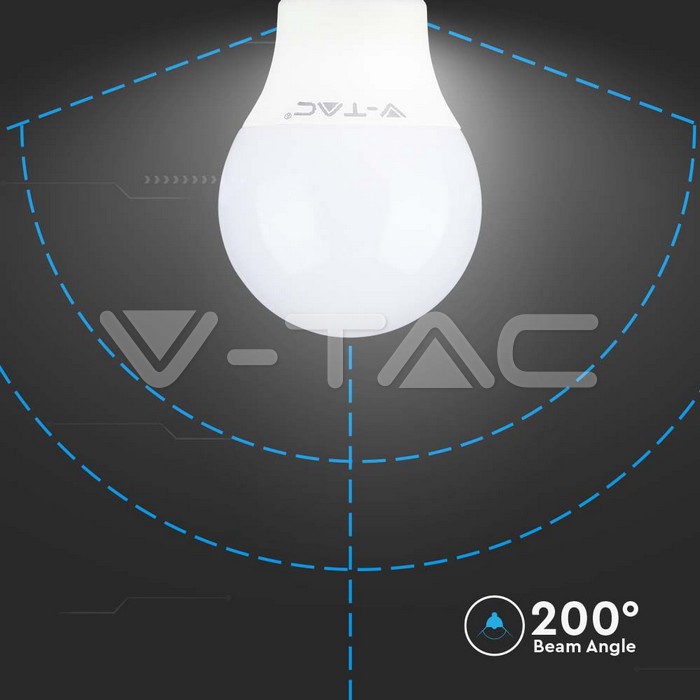

Radiation angle 200 °
Colour rendering index CRI 80 Ra
Barva světla Natural White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 90 lm/W
