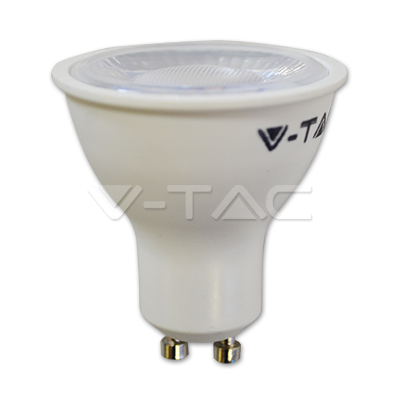

LED Spotlight - 8W GU10 SMD White Plastic Lens 38° Warm White, VT-2889

Product evaluation Favourite Comparison Send to email Whole product group E-shop
Order number: SKU1693
Brand: V-TAC
Type / Description: LED spotlight GU10
Jmenovité napětí (V):220 - 240
Nominal wattage:8
Colour temperature:3000
Colour rendering index CRI:> 80
Luminous flux:750
Lamp efficacy:94
Unit EAN13 code: 3800157608947
Use: Components for LED lighting

Download


Technical drawing not available



Wiring Diagram not available


General information

Brand/Manufacturer V-TAC
Material Plastic
Dimmable Ne
Energy efficiency class (canceled regulation!) A+
Nominal voltage (V) 220 - 240 V
Degree of protection (IP) IP20
Název položky LED spotlight GU10
Skupina produktu V-TAC VT-2889

Working conditions

Temperature -0,444444444 °C

EuP Parameters

Number of maximal switching cycles 15000
Rated service life 20000 h
Turn-on time 0.001 sec (instant on) s
GLS replacement 80 W

Safety information

Product certification CE, EMC, ROHS

Lamp lumen maintenance factor (LLMF)

Lumen maintenance factor at the end of the nominal life 70 %

Electrical characteristics

Nominal wattage 8 W
Frequency 50 Hz

Physical characteristics

Type of chip SMD
Height 55 mm
Diameter 50 mm
Počet ks v balení 1
Barva tělesa V-TAC White
Počet kusů v kartonu 200

Lighting characteristics

Luminous flux 750 lm
Colour temperature 3000 K
Radiation angle 38 °
Colour rendering index CRI 80 Ra
Barva světla Warm White

Energetic characteristics

Lamp Power factor (PF) >0.5
Lamp efficacy 94 lm/W
